Concrete Grinding Process

Professional Floor Preparation From Coating Removal to High Gloss Finishing

Complete Grinding Workflow

Inspection→

Coating Removal→

Grinding→

Refining→

Polishing→

Finished Floor

STEP 1
Inspection

i流程图1

Evaluate the floor condition before grinding.

  • Concrete hardness
  • Existing coating
  • Surface damage
  • Crack inspection

Recommended Tools

  • Mohs Hardness Tester
  • Crack Repair Products
View Products
STEP 2

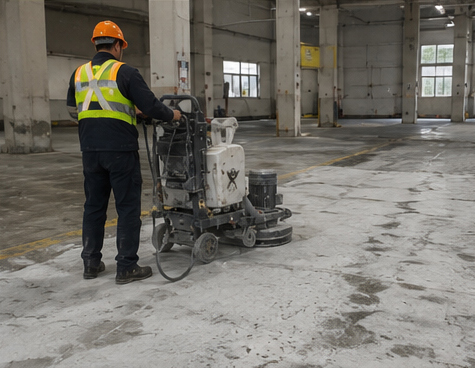

Coating Removal

i流程图2
  • Remove epoxy
    paint
    adhesive
    coatings

Recommended Tool:

  • PCD Tools
View Products
STEP 3

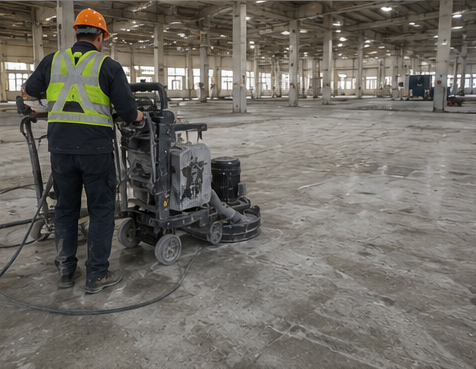

Concrete Grinding

i流程图3
  • Flatten the slab and remove scratches.

Recommended Tool

  • Metal Bond Grinding Tools
View Products
STEP 4

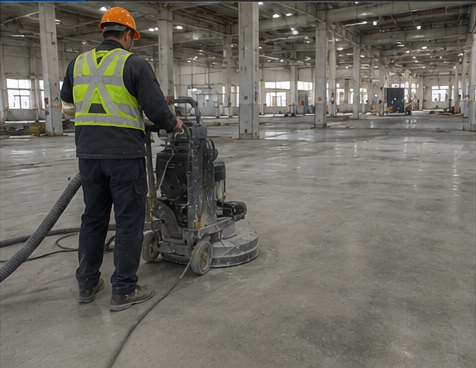

Surface Refining

i流程图4
  • Remove deep scratches before polishing.

Recommended Tool

  • Hybrid Pads
View Products
STEP 5
Concrete Polishing

i流程图5
  • Increase gloss from matte finish to mirror finish.

Recommended Tool

  • Resin Polishing Pads
View Products
STEP 6
Finished Surface
i流程图6
  • Uniform gloss
  • Easy maintenance
  • Long service life
View Products

Recommended Grinding Sequence

PHASE 1     Coating Removal

01   PCD Tools

PHASE 2    Concrete Grinding

02   16 Grit Metal Bond

03   30 Grit Metal Bond

04   50 Grit Metal Bond

05   80 Grit Metal Bond

PHASE 3  Surface Refining

06   Hybrid 100

07   Hybrid 200

PHASE 4  Polishing

08  Resin 50

09   Resin 100

10  Resin 200

11   Resin 400

12  Resin 800

13   Resin 1500

14   Resin 3000

Choose the Correct Bond


MOHS HARDNESS

Mohs2-3

Mohs4-5

Mohs6-7

Mohs8-9

MPA

C10-C25

C30-C40

C45-C55

C60-C70

CONCRETE

Soft Floor(SF)

Medium Floor(MF)

Hard Floor(HF)

Very Hard Floor(VHF)

DIAMOND BOND HARDNESS

Hard Bond(HB)

Medium Bond(MB)

Soft Bond(SB)

Very Soft Bond(VSB)

DIAMOND BOND COLOR

Recommended Tool System

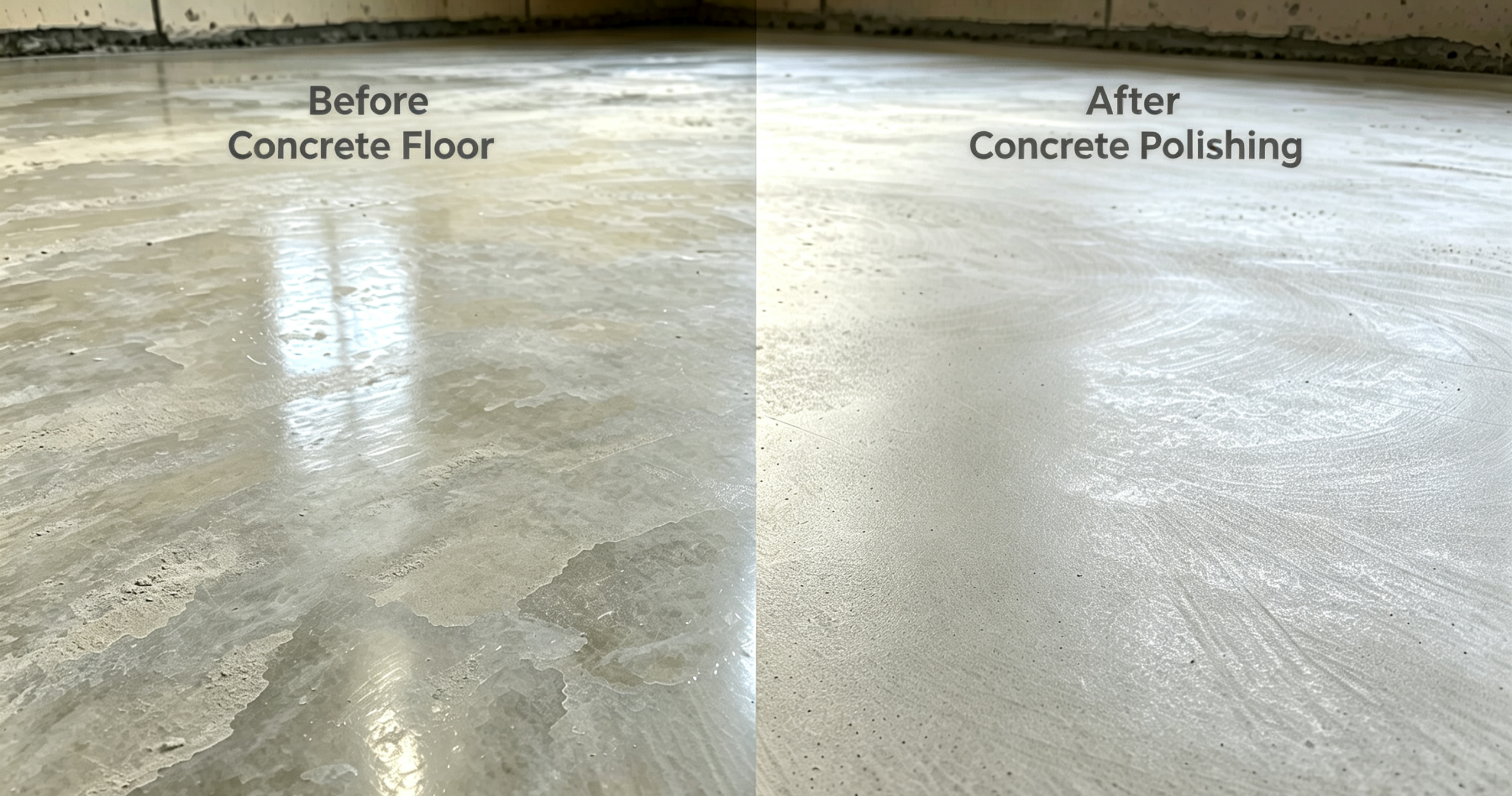

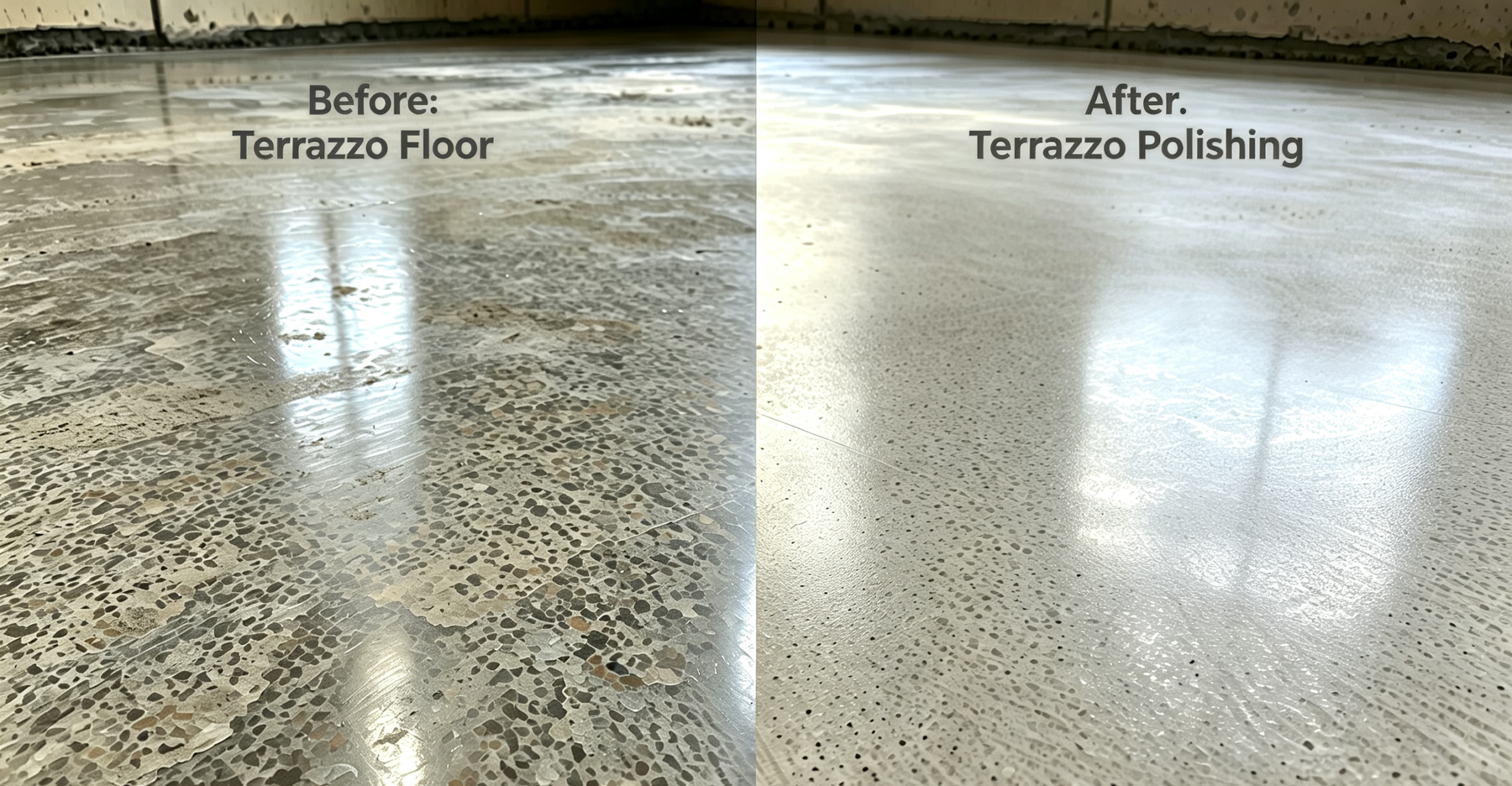

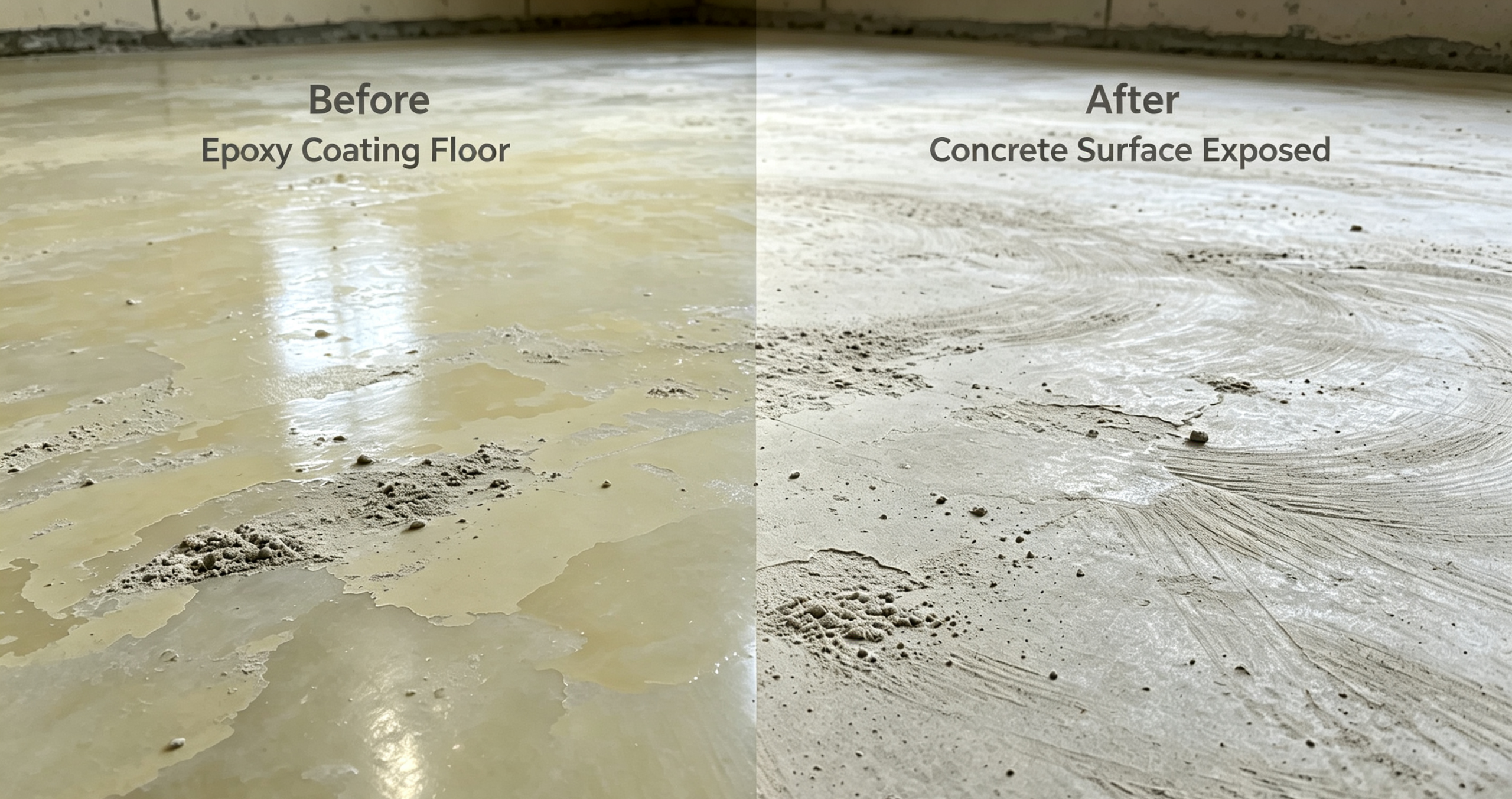

epoxy coating floor uneven concrete floor concrete polishing terrazzo floor polishing

Recommended Tools

  • PCD Grinding Tools
  • Arrow Segment PCD
  • Split PCD

Recommended Tools

  • 16 Grit
  • 20 Grit
  • Double Segment
  • Arrow Segment

Recommended

  • Hybrid Pads
  • Resin Pads

Recommended

  • Metal Bond
  • Resin Pads

Concrete Grinding Process

From Rough To Smooth,Step By Step

混凝土流程图3

FAQ

What grit should I start with?

There isn’t a single starting grit for every floor. If you’re removing coatings, start with a PCD tool. For bare concrete, most contractors begin with 16# or 30# metal bond diamonds, depending on how uneven or hard the floor is. Always inspect the slab before choosing the first grit.


Can PCD remove epoxy?

Yes. PCD tools are one of the fastest ways to remove thick epoxy coatings, paint, glue and mastic. They are designed for coating removal rather than grinding concrete, so once the coating is removed, the floor should be continued with metal bond diamonds.


How do I know concrete hardness?

The most reliable method is to test the slab with a Mohs hardness kit. If a tester isn’t available, experienced contractors often judge hardness by how quickly the diamonds wear during the first grinding pass. Choosing the right bond for the concrete is more important than choosing the grit itself.


How many grinding steps are required?

It depends on the condition of the floor and the finish you want. For a standard polished concrete floor, 6–8 grinding and polishing steps are common. Floors with heavy coatings, uneven surfaces or damage may require additional grinding passes.


When should I switch to resin pads?

Switch to resin pads only after the metal bond scratches have been removed. The surface should feel smooth and have a consistent scratch pattern. Moving to resin too early usually makes polishing slower and can leave visible scratches in the finished floor.

水磨石前后对比图2.1
