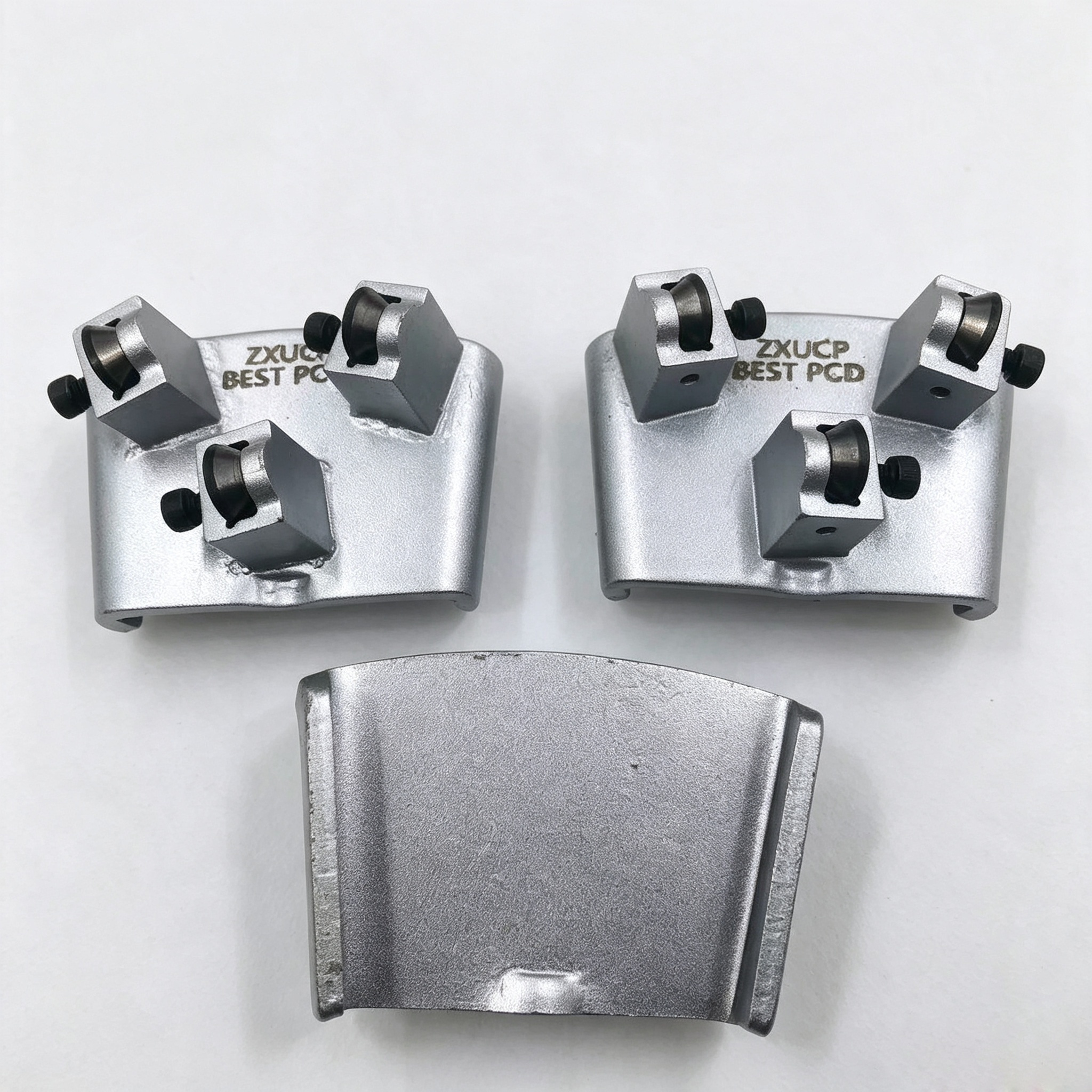

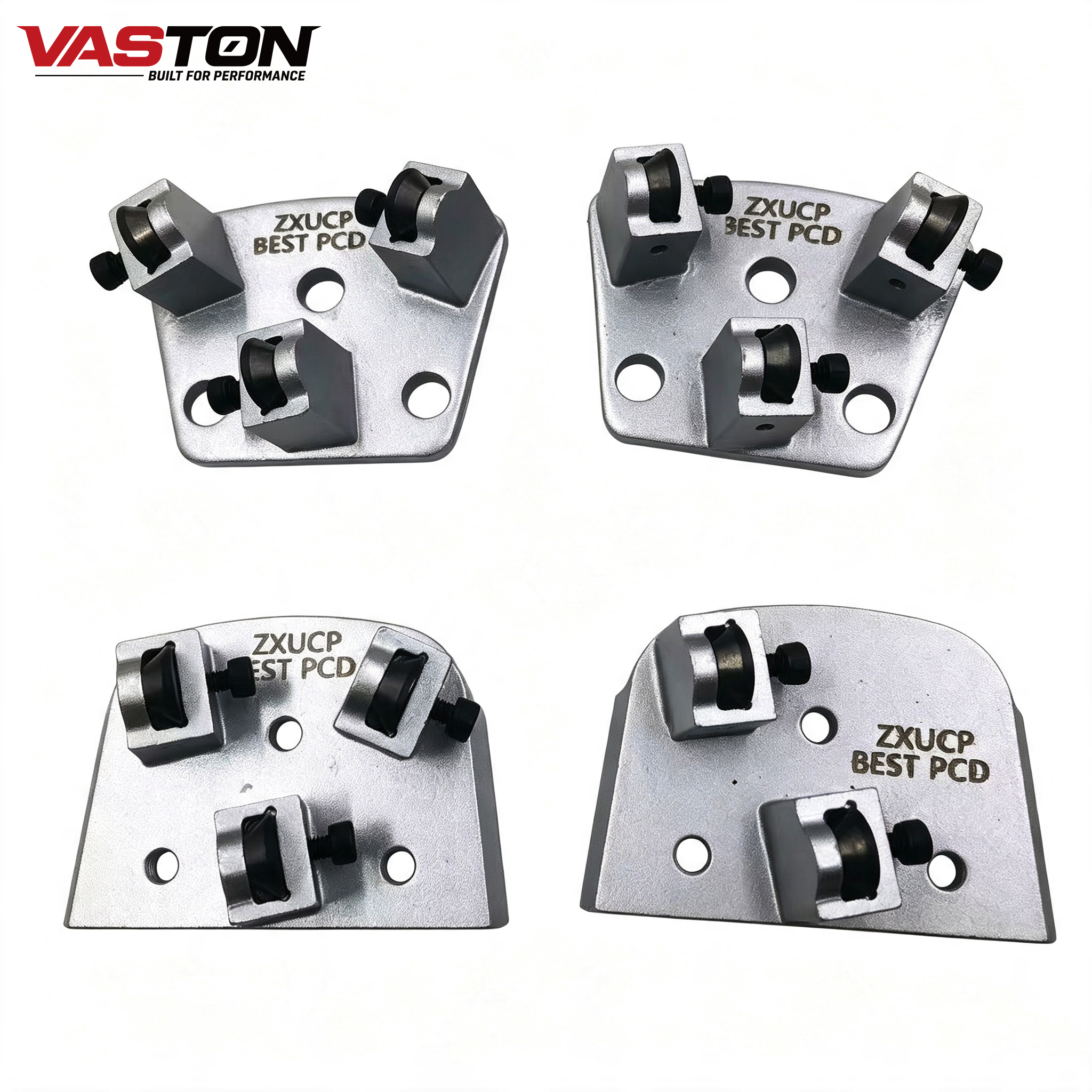

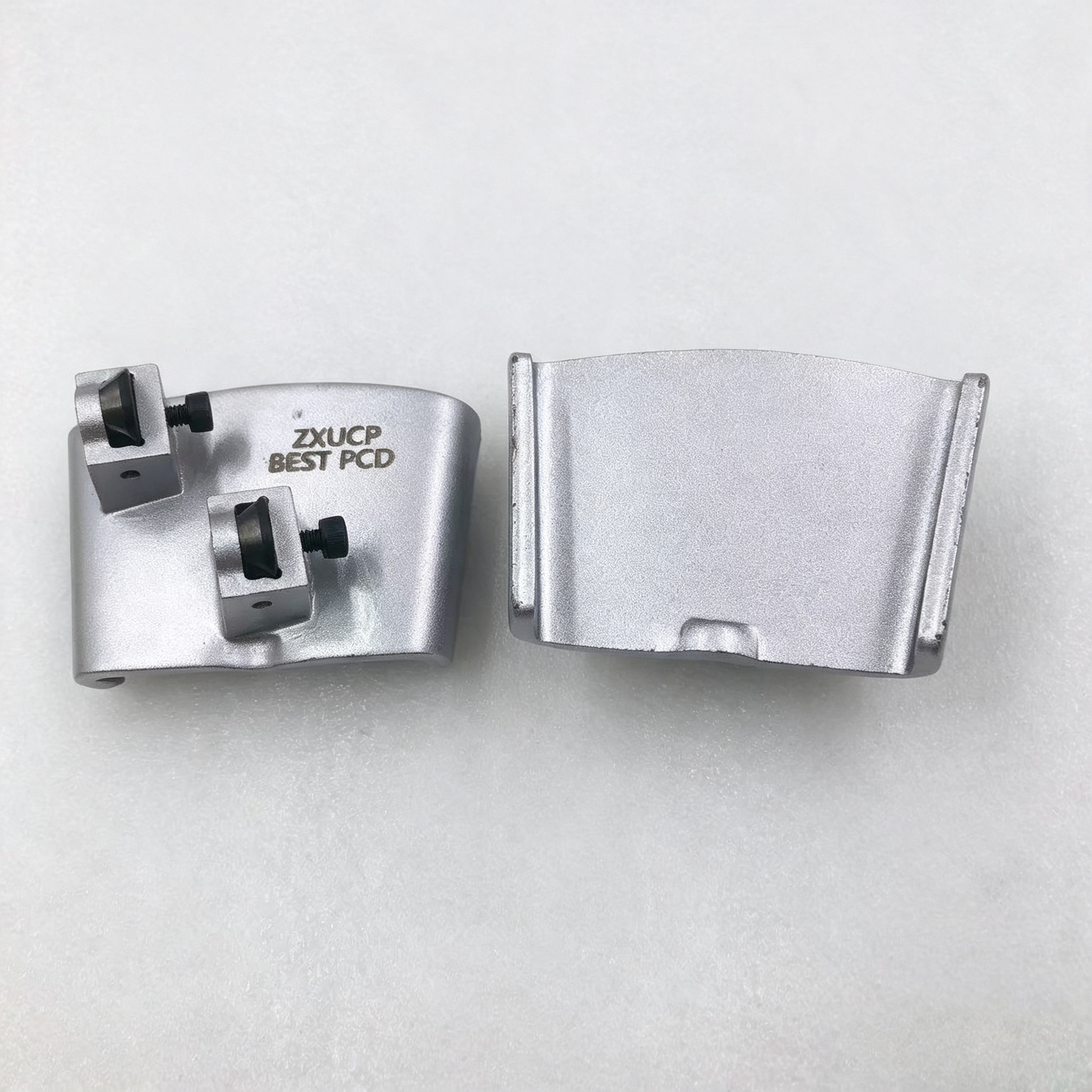

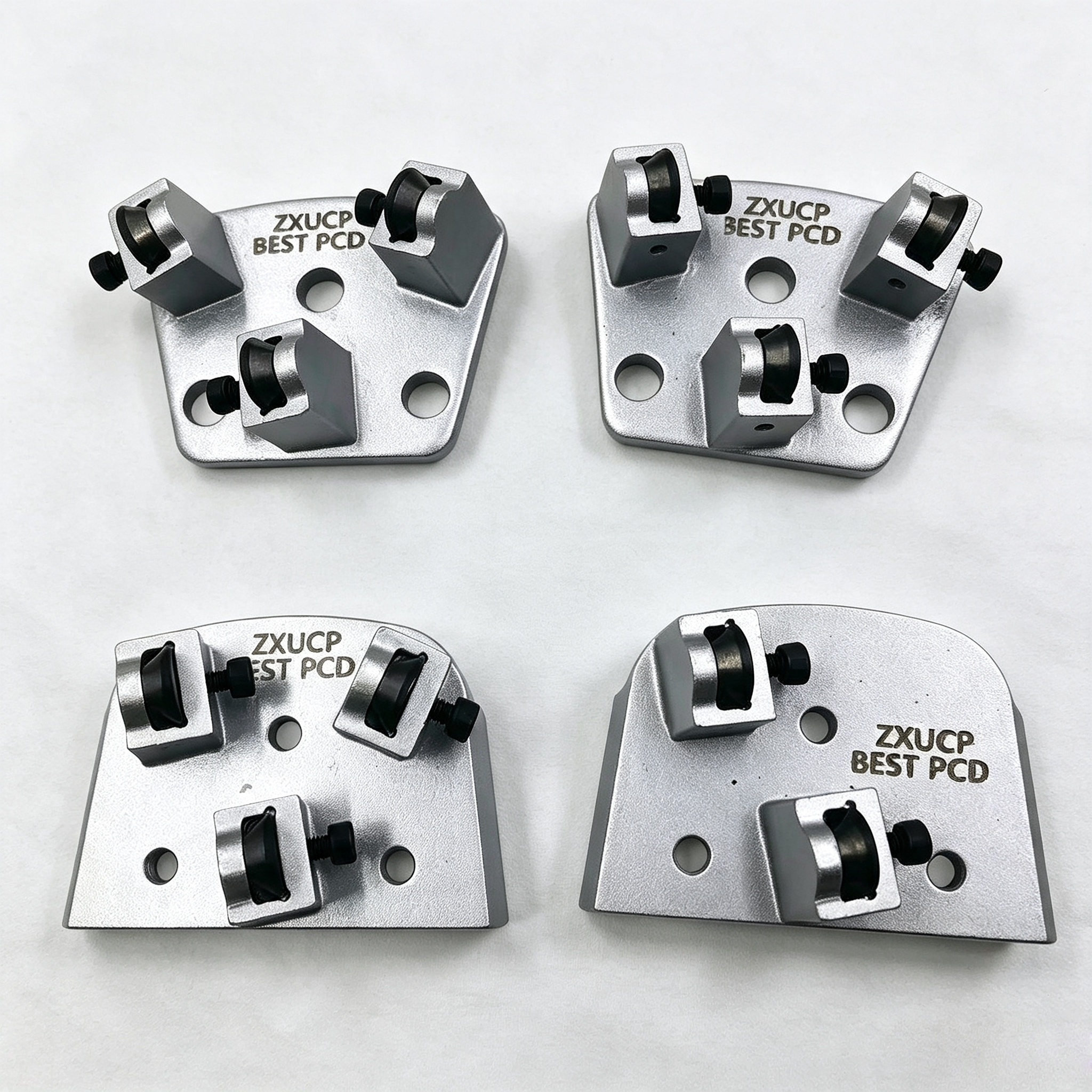

PCD Diamond Grinding Shoes for Concrete & Epoxy Coating Removal

PCD Diamond Grinding Shoes for Concrete Coating Removal

PCD Diamond Grinding Shoes are mainly used for removing epoxy coatings, paint, glue, adhesive residue, and other coatings from concrete floors. They are often used at the first stage of a floor renovation project, before regular concrete grinding and polishing.

The PCD segments have a more aggressive cutting action than standard metal bond diamond segments, making them a practical choice when there is a thick or difficult-to-remove coating on the floor. After the coating is removed, the concrete surface can be further ground and prepared for polishing or a new coating.

These PCD grinding shoes can be used with professional floor grinding machines and are suitable for different types of concrete floor projects. The actual performance depends on the coating thickness, concrete condition, machine, working speed, and tool configuration.

Main Applications

PCD Diamond Grinding Shoes are commonly used for:

• Epoxy coating removal
• Concrete coating removal
• Paint removal
• Glue and adhesive removal
• Floor preparation
• Concrete surface preparation
• Industrial floor renovation
• Warehouse floor preparation
• Garage floor preparation
• Commercial floor renovation

They are especially useful when an old coating needs to be removed before the concrete underneath can be properly ground.

For example, an old warehouse floor may have several layers of epoxy coating, or a garage floor may have a worn and damaged coating. In these situations, using a suitable PCD tool can help remove the coating before switching to conventional diamond grinding tools.

Why Use PCD Grinding Shoes?

Aggressive Coating Removal

The main purpose of a PCD grinding shoe is coating removal. The PCD segments are designed to cut through coating materials and help remove them from the concrete surface.

They are a good option for jobs where a standard diamond grinding segment is not the most efficient choice because the coating is too thick, soft, sticky, or difficult to remove.

Suitable for Thick Floor Coatings

PCD tools can be used on many common floor coating materials, including epoxy, paint, adhesive, and other resin-based coatings. The correct tool should be selected according to the actual coating and floor condition.

For very thick coatings, multiple passes may be required. The working result can also vary depending on the grinding machine and operating conditions.

Efficient Surface Preparation

Removing the existing coating is an important part of concrete floor preparation. A suitable PCD grinding shoe can help expose more of the concrete surface before the next grinding step.

Once the coating has been removed, metal bond diamond tools can normally be used to grind and level the concrete.

Suitable for Professional Floor Grinders

PCD Diamond Grinding Shoes are available for use with different professional floor grinding systems. The tool type and mounting configuration should match the machine and tool holder.

If you are not sure which PCD configuration is suitable for your machine, it is useful to provide the machine model, tool holder type, coating material, and approximate coating thickness when requesting a recommendation.

Suitable Applications

Application	Purpose
Epoxy Removal	Remove old epoxy coatings
Coating Removal	Remove stubborn floor coatings
Concrete Preparation	Prepare concrete before grinding
Floor Renovation	Prepare existing floors for renovation
Industrial Floors	Remove coatings from industrial concrete floors
Warehouse Floors	Prepare warehouse floors for further treatment
Garage Floors	Remove old garage floor coatings
Commercial Floors	Prepare commercial floors for renovation

Typical Floor Preparation Process

PCD grinding shoes are normally used at the beginning of the floor preparation process.

A typical project may follow this sequence:

Step 1 – Coating Removal
Use PCD grinding shoes to remove epoxy, paint, adhesive, or other existing coatings.

Step 2 – Concrete Grinding
After the coating has been removed, use metal bond diamond grinding tools to grind the concrete and remove remaining surface imperfections.

Step 3 – Surface Refining
Hybrid or transition tools can be used when a smoother and more uniform surface is required before polishing.

Step 4 – Polishing
Resin diamond polishing pads are used for the final polishing process according to the required floor finish.

The exact process can vary depending on the existing floor condition and the final surface requirement.

Tool Selection

There is no single PCD tool that is suitable for every floor. The right choice depends on the coating material, coating thickness, concrete hardness, machine type, and required removal rate.

When choosing PCD Diamond Grinding Shoes, we recommend considering:

• Type of coating
• Approximate coating thickness
• Concrete condition
• Grinding machine model
• Tool mounting system
• Required removal performance
• Floor area and working conditions

For contractors and distributors, we can discuss different PCD configurations according to the application and machine system.

PCD Grinding Shoes for Floor Preparation

PCD Diamond Grinding Shoes are a practical solution for the initial removal stage of concrete floor renovation. They are mainly used when old epoxy, paint, adhesive, or other coatings need to be removed before concrete grinding and polishing.

If you are looking for PCD grinding tools for a specific machine or floor application, please provide the machine model, mounting system, coating type, and coating thickness. We can help recommend a suitable configuration for your project.
