Trapezoid Metal Bond Diamond Grinding Plate for Concrete

Trapezoid Metal Bond Diamond Grinding Plate for Concrete

Trapezoid metal bond diamond grinding plate are designed for concrete floor grinding, leveling and surface preparation. This tool features multiple diamond grinding segments mounted on a metal plate, providing a practical solution for removing concrete surface material and preparing floors for the next stage of renovation.

The trapezoid diamond segments are arranged across the working plate to provide a stable grinding surface during operation. The metal bond holds the diamond abrasive firmly in place and is suitable for applications where effective material removal and a durable grinding tool are required.

This type of trapezoid metal bond diamond grinding plate can be used as part of a professional concrete floor preparation process. Depending on the selected diamond grit and bond, the tool can be matched to different concrete conditions and grinding requirements.

Trapezoid Diamond Segment Design

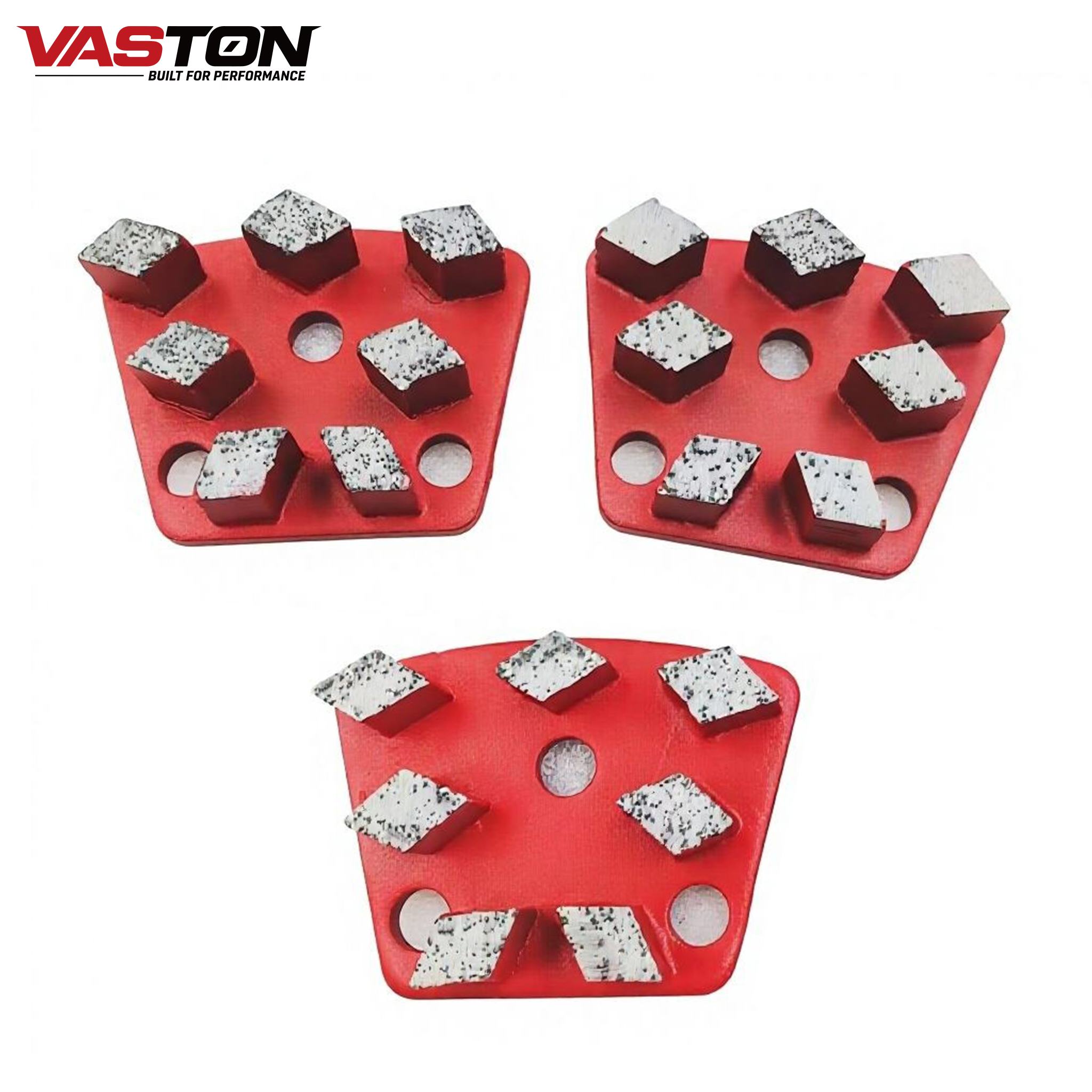

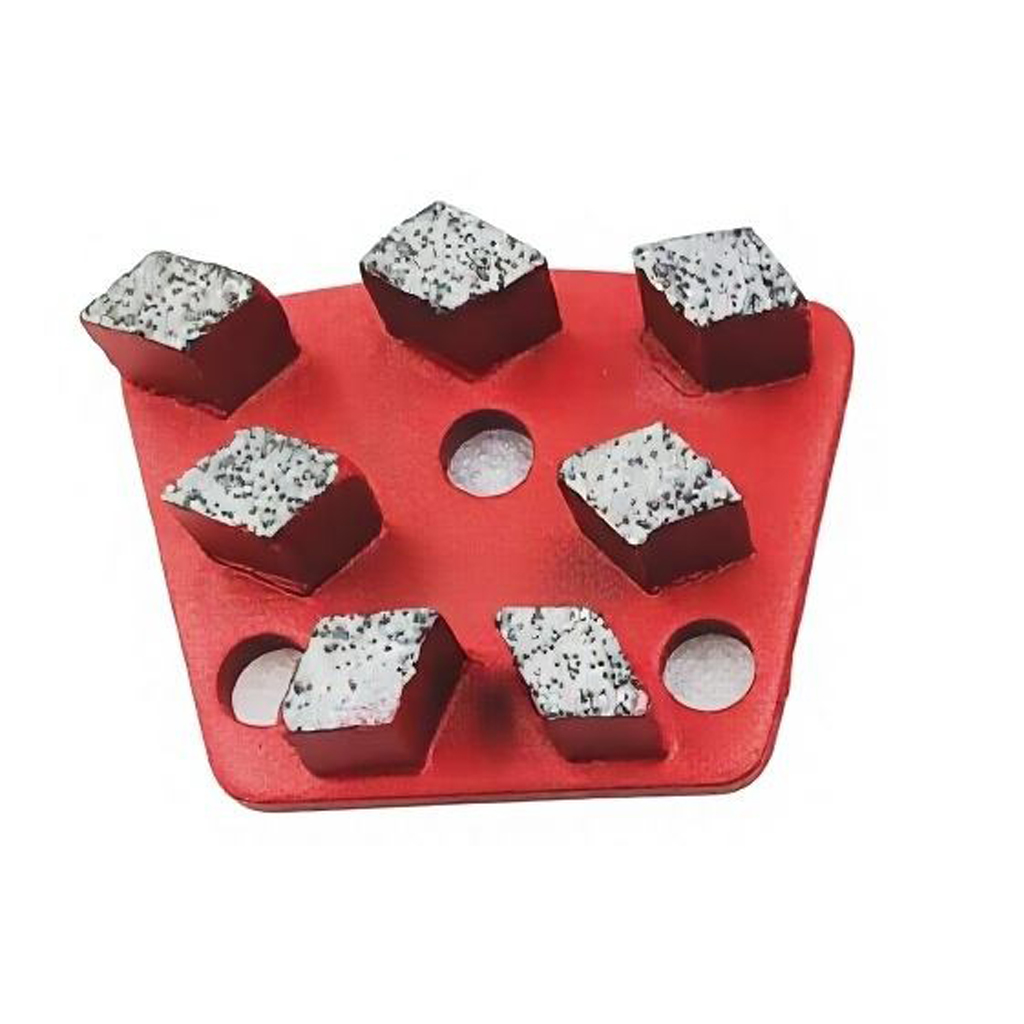

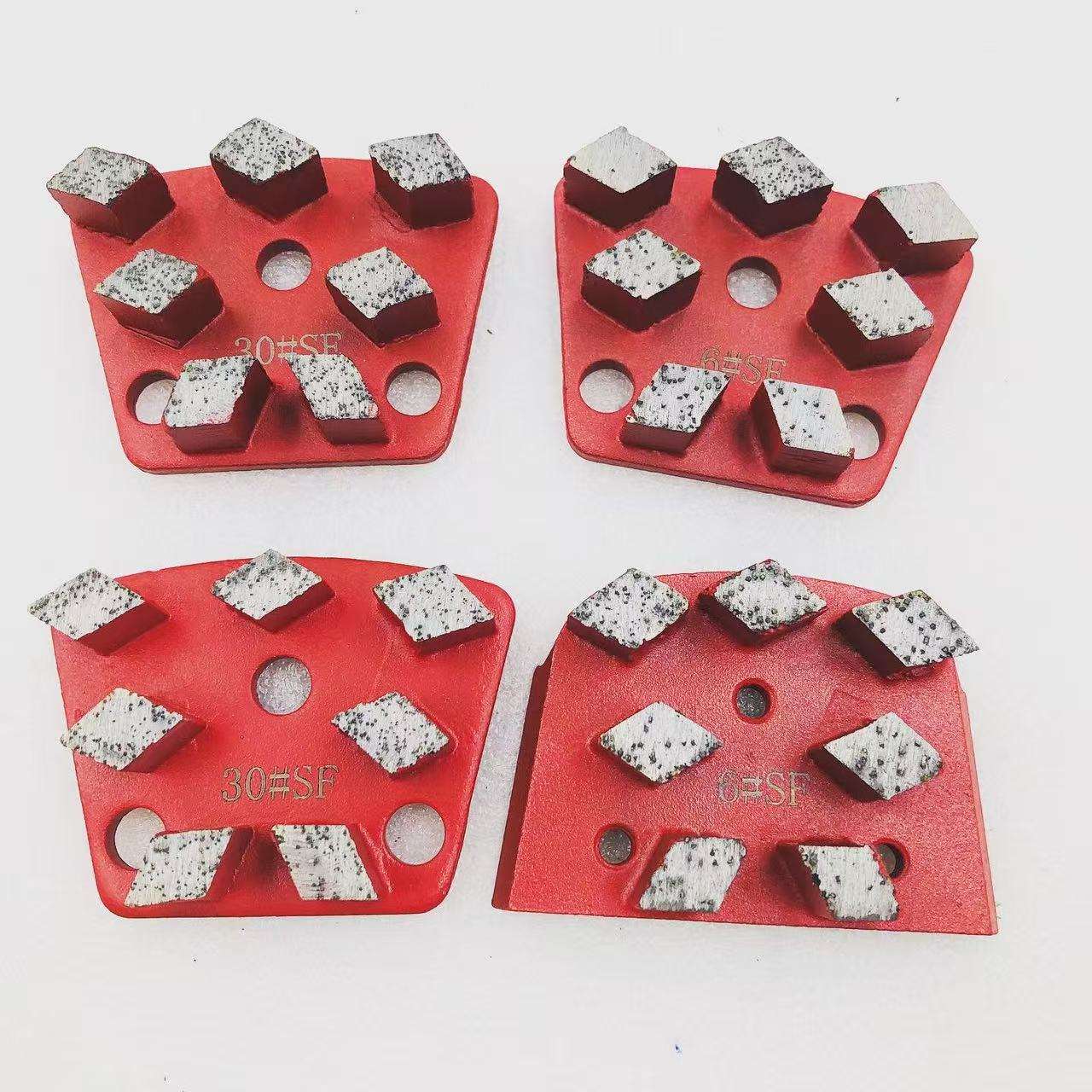

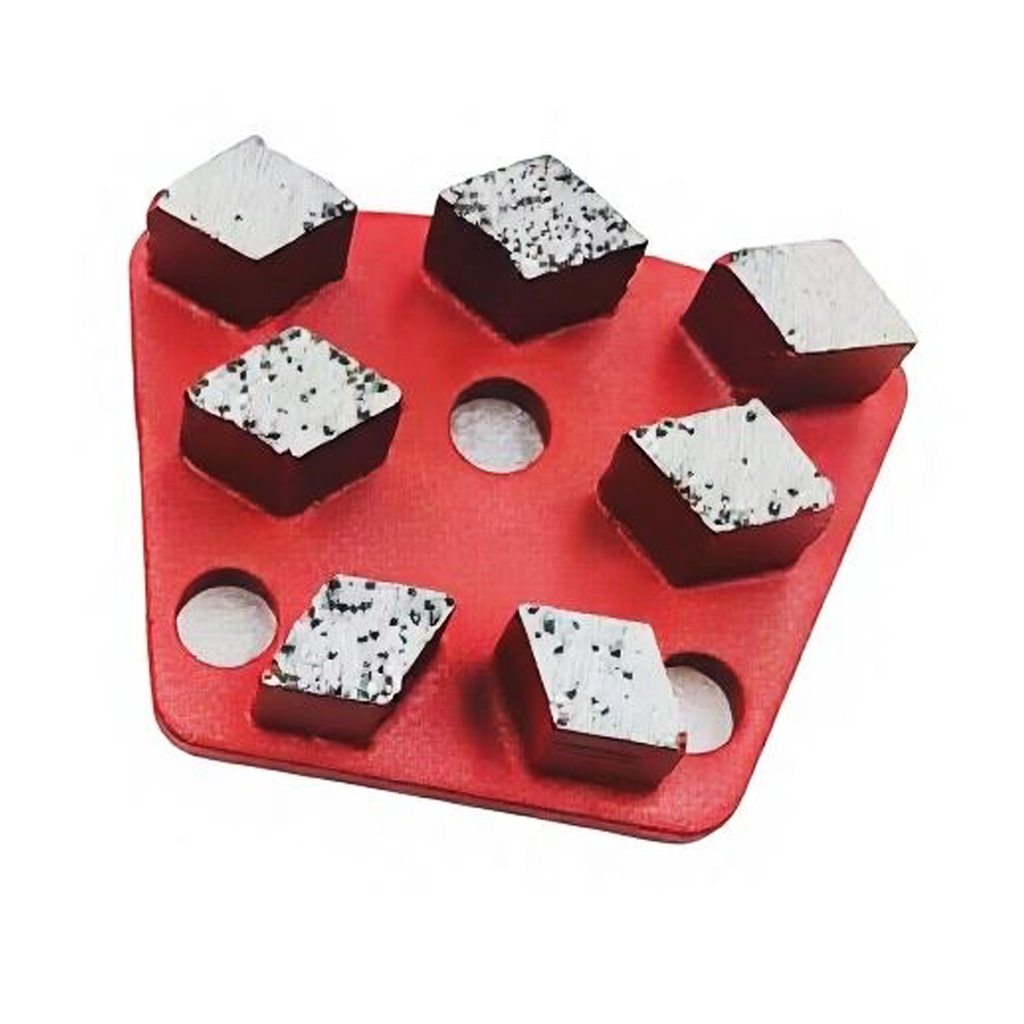

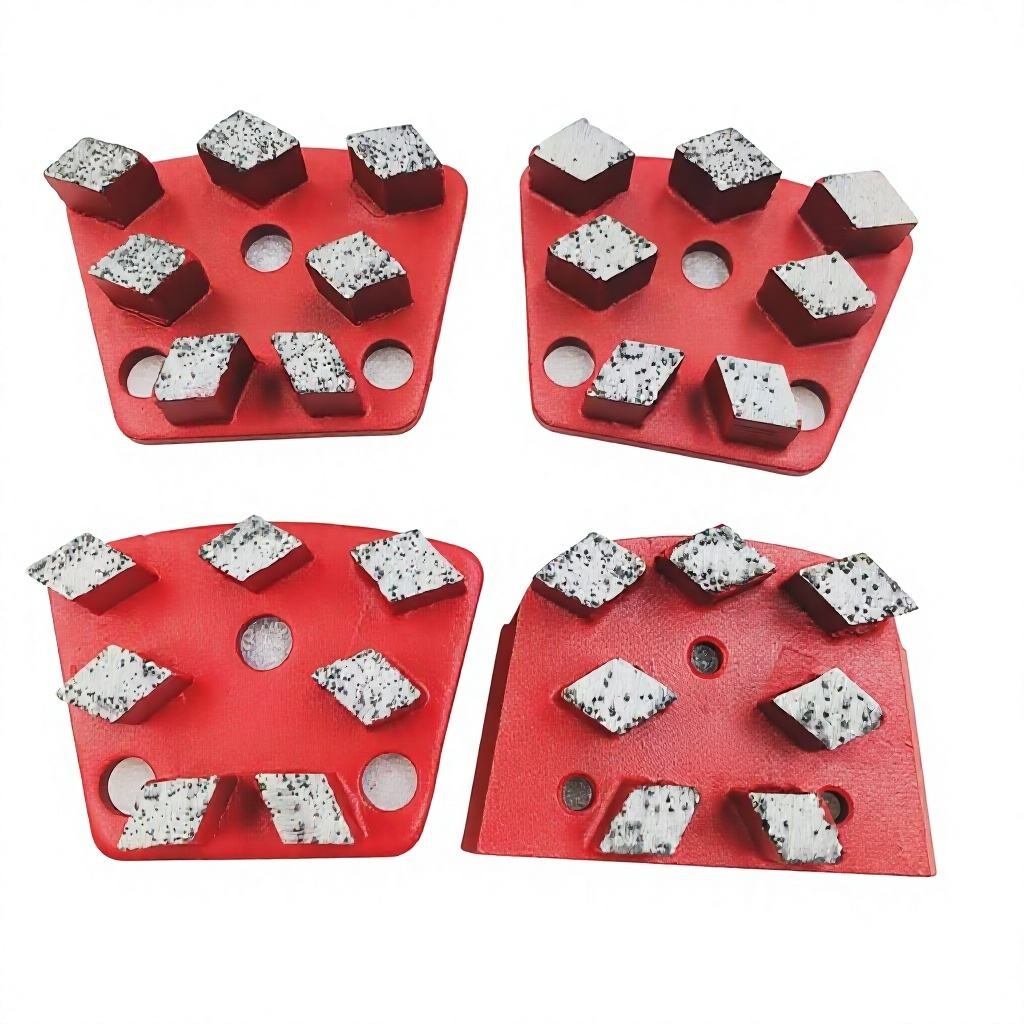

The grinding segments have a trapezoid-style shape and are distributed across the red metal backing plate. The exposed diamond abrasive on the working surface is responsible for contacting the concrete during grinding.

The segment arrangement provides several working points across the tool rather than relying on a single continuous grinding surface. This design is commonly used for concrete grinding applications where controlled material removal is required.

Different concrete floors may require different diamond specifications. For this reason, diamond grit and bond selection should be considered according to the hardness and condition of the concrete. Soft, medium and hard concrete can require different bond characteristics to achieve a suitable balance between cutting performance and tool life.

Applications

These metal bond diamond grinding plate are mainly intended for concrete floor grinding and surface preparation.

Typical applications include:

• Concrete floor grinding
• Concrete surface leveling
• Removal of minor surface irregularities
• Preparation of concrete floors before polishing
• Preparation of concrete surfaces before coating
• Industrial floor renovation
• Warehouse floor preparation
• Garage floor preparation
• Commercial and other concrete floor projects

The actual performance of the tool depends on the concrete condition, machine, operating conditions, diamond grit and bond selected for the application.

Metal Bond and Diamond Grit Options

Metal bond diamond tools are commonly selected for the initial stages of concrete floor preparation because they are designed for material removal and surface grinding.

Different diamond grits can be used for different stages of grinding. Coarser grits are generally used when more aggressive material removal is required, while finer grits can be used as the floor moves toward a more refined surface.

The bond is also important when selecting a diamond grinding tool. A suitable bond should be matched to the hardness of the concrete. Choosing the correct combination of diamond grit and bond can help maintain a consistent grinding process and avoid unnecessary tool wear.

If you are not sure which grit or bond is suitable for your floor, provide us with information about the concrete hardness, floor condition and application. We can recommend a suitable configuration based on the actual project requirements.

Suitable for Professional Floor Preparation

This trapezoid metal bond diamond grinding shoes design is suitable for contractors, floor preparation companies and distributors who need diamond tooling for concrete grinding applications.

Before use, the grinding tool should be checked for correct installation and compatibility with the grinding machine. The working surface should also be inspected regularly during operation. Proper machine settings and suitable grinding pressure can help maintain stable performance and extend the useful life of the diamond segments.

Because concrete conditions vary from project to project, there is no single diamond specification that is suitable for every floor. For this reason, we offer different diamond configurations according to the required grinding application.

OEM and Custom Diamond Tool Options

For distributors and professional floor contractors, custom diamond tools can be produced according to specific application requirements. Options may include different diamond grits, bond formulations and segment configurations, depending on the required application and production specifications.

If you are looking for trapezoid metal bond diamond grinding plate for concrete floor grinding, send us your required size, grit, bond and machine information. Our team can help confirm the appropriate configuration before production.

This tool is intended for professional concrete grinding and floor preparation applications. Actual grinding performance and tool life may vary depending on concrete hardness, surface condition, machine type, operating conditions and the selected diamond specification.
